Perlan 140 set for timber leaves

Track Perlan 140 * Track for sliding door fitting

Perlan 140 Track
  • Track for sliding door fitting with leaf weight up to 140 kg
Contact us

Track Perlan 140

Application Areas

  • For leaf weights up to 140 kg
  • For timber, plastic, glass and metal leaves
  • Suitable for Perlan roller carriage

Technical data

Track Perlan 140
Leaf weight (max.) 140 kg

Downloads

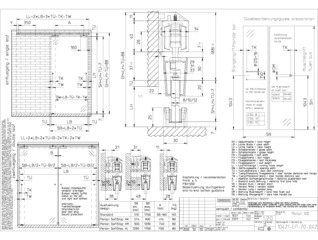

Bottom guide for sliding panel Variant 1 Variant 2 Variant 3 (.pdf | 744 KB) Installation drawing DE EN (754913)
Perlan 140 AUT 2 wood ceiling bracket (.dxf | 2 MB)
Perlan 140 AUT 2 wood ceiling Clip-on cover 100 (.dxf | 2 MB)
Perlan 140 AUT 2 wood Ceiling compensation (.dxf | 3 MB)
Perlan 140 AUT NT / Perlan 140 AUT 2 Wood Wall installation Clip-on cover 100 (.dwg | 612 KB)

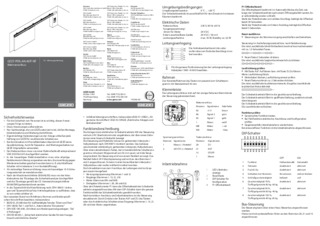

Perlan 140 AUT- NT Glass leaf without machining Glass clamping plate 30mm without cover Wall installation with bracket Clip-on cover 100 with spacer bracket (.pdf | 243 KB) Installation drawing DE EN (754235)
Perlan 140 AUT-NT Glass Ceiling Clip-on cover 100 height compensation (.dwg | 1 MB)
Perlan 140 AUT-NT wood wall clip-on cover 100 (.dxf | 2 MB)

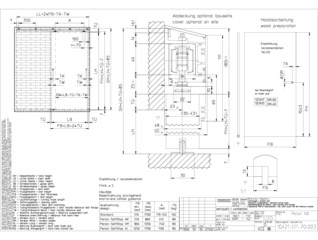

Perlan 140 AUT/ 2 Wooden leaf Standard carrier plate ceiling installation with bracket (.pdf | 128 KB) Installation drawing DE EN (753816)
Perlan 140 Duosync Wood Ceiling Clip-on cover 100 direct height compensation (.dxf | 2 MB)
Perlan 140 Duosync Wood Wall Clip-on cover 100 (.dxf | 2 MB)

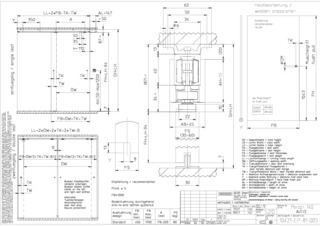

Perlan 140 Duosync Wooden leaf Standard carrier plate Ceiling installation with height compensation Clip-on cover 100 without spacer bracket (.pdf | 135 KB) Installation drawing DE EN (754322)

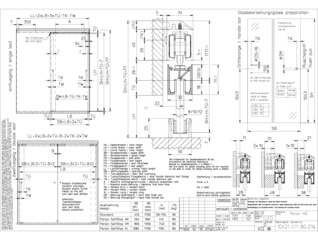

Perlan 140 Glass leaf GGS: without machining Ceiling installation with fixed panel (.pdf | 150 KB) Installation drawing DE EN (754151)
Perlan 140 Glass leaf GGS:wall installation with bracket without processing (.pdf | 164 KB) Installation drawing DE EN (754686)
Perlan 140 Glass leaf GGS:without machining wall installation with concealed bracket (.pdf | 182 KB) Installation drawing DE EN (754027)
Perlan 140 Glass leaf with machining Glass clamping plate 30 mm individually covered Ceiling installation with height compensation (.pdf | 147 KB) Installation drawing DE EN (754084)
Perlan 140 Glass leaf with machining Glass clamping plate 30 mm individually covered Wall installation with bracket (.pdf | 154 KB) Installation drawing DE EN (754074)
Perlan 140 Glass leaf without machining Glass clamping plate 30 mm continuously blended ceiling installation without bracket (.pdf | 172 KB) Installation drawing DE EN (754724)
Perlan 140 Glass leaf without machining Glass clamping plate 30 mm continuously blended Wall installation with concealed bracket (.pdf | 185 KB) Installation drawing DE EN (754907)
Perlan 140 Glass leaf without machining Glass clamping plate individually covered Wall installation with concealed bracket (.pdf | 176 KB) Installation drawing DE EN (754737)
Perlan 140 Glass leaf without machining Glass cover plate individually covered Ceiling installation with fixed panel (.pdf | 107 KB) Installation drawing DE EN (754502)
Perlan 140 SoftStop (.dwg | 744 KB)
Perlan 140 Standard glass Wall concealed bracket all-glass system (.dxf | 3 MB)
Perlan 140 standard glass Wall wall bracket all-glass system (.dxf | 3 MB)
Perlan 140 standard wood ceiling fixed panel all-glass system (.dxf | 1 MB)
Perlan 140 standard wood ceiling fixed panel all-glass system (.dxf | 2 MB)
Perlan 140 standard wood ceiling height compensation all-glass system (.dxf | 5 MB)
Perlan 140 Standard wood Ceiling height compensation carrier plate concealed (.dxf | 5 MB)
Perlan 140 Standard wood ceiling height compensation clip-on cover 100 direct (.dxf | 5 MB)
Perlan 140 Standard wood Ceiling installation height compensation carrier plate concealed (.dwg | 1 MB)
Perlan 140 Standard wood Wall installation concealed carrier plate (.dxf | 3 MB)
Perlan 140 standard wood wall installation concealed wall bracket (.dwg | 686 KB)
Perlan 140 standard wood wall installation concealed wall bracket all-glass system (.dxf | 2 MB)
Perlan 140 standard wood wall installation direct all-glass system (.dwg | 402 KB)
Perlan 140 Standard wood Wall installation wall bracket clip-on cover 100 direct (.dwg | 493 KB)
Perlan 140 telescopic wood ceiling clip-on cover 100 direct (.dxf | 3 MB)
Perlan 140 telescopic wood ceiling clip-on cover 100 height compensation (.dxf | 3 MB)
Perlan 140 telescopic wood ceiling installation clip-on cover 100 direct (.dwg | 919 KB)
Perlan 140 telescopic wood ceiling installation clip-on cover 100 height compensation (.dwg | 1 MB)
Perlan 140 telescopic wood wall bracket medium (.dxf | 5 MB)
Perlan 140 wooden leaf all-glass system with machining ceiling installation with bracket (.pdf | 126 KB) Installation drawing DE EN (753889)
Perlan 140 wooden leaf all-glass system with machining ceiling installation without bracket (.pdf | 123 KB) Installation drawing DE EN (754764)
Perlan 140 Wooden leaf all-glass system with machining Wall installation with concealed bracket (.pdf | 145 KB) Installation drawing DE EN (754848)
Perlan 140 Wooden leaf all-glass system without machining Wall installation with concealed bracket (.pdf | 150 KB) Installation drawing DE EN (754081)

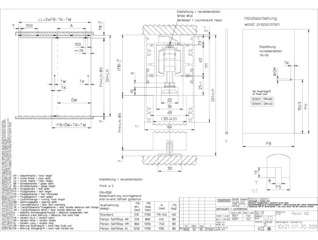

Perlan 140 Wooden leaf Standard carrier plate Ceiling installation with bracket (.pdf | 111 KB) Installation drawing DE EN (754071)
Perlan 140 Wooden leaf Standard carrier plate Ceiling installation with height compensation Clip-on cover 100 with spacer bracket (.pdf | 135 KB) Installation drawing DE EN (754283)

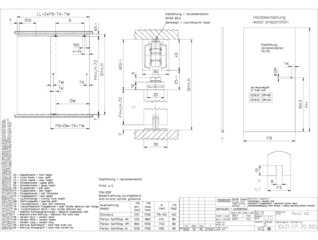

Perlan 140 Wooden leaf Standard carrier plate Ceiling installation without bracket (.pdf | 112 KB) Installation drawing DE EN (754466)
Perlan 140 Wooden leaf standard carrier plate Wall installation with bracket Clip-on cover 100 with spacer bracket (.pdf | 132 KB) Installation drawing DE EN (754536)

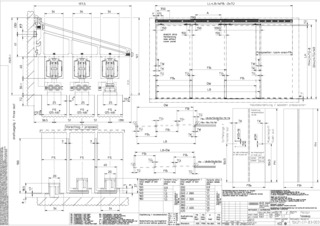

Perlan Telescope wooden leaf standard carrier plate Wall installation with attachment bracket long cover long (.pdf | 214 KB) Installation drawing DE EN (753852)
Perlan telescopic wooden leaf standard carrier plate ceiling installation with height compensation clip-on cover 100 without spacer bracket (.pdf | 145 KB) Installation drawing DE EN (754468)
