ECturn * Electromechanical swing door drive for accessible single leaf doors weighing up to 125 kg

ECturn
  • Opening and closing speed can be individually adjusted
  • Electrical latching action which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
Show more
  • Drive can be used with guide rail or link arm
  • Glass guide rail available for use on glass doors with a glass thickness of 8-10 mm
  • Optional rechargeable battery provides maximum safety during a power failure
  • Optional radio reception board for wireless activation by radio transmitter
Contact us

Application Areas

  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1100 mm leaf width or 125 kg weight
  • Entrance and interior doors with moderate access frequency
  • Automation of frameless all-glass doors
  • Door leaf installation and transom installation
  • Barrier-free access

Technical data

ECturn
Leaf weight (max.) 1-leaf 125 kg
Leaf width (min.-max.) 650 mm - 1100 mm
Reveal depth (max.) 200 mm
Door overlap (max.) 50 mm
Drive type Electromechanical
Opening angle (max.) 110 °
DIN left Yes
DIN right Yes

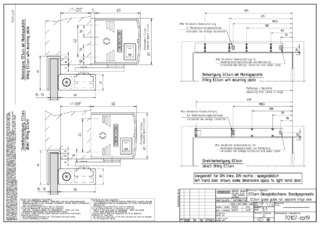

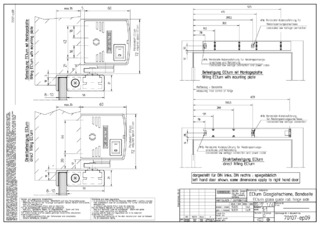

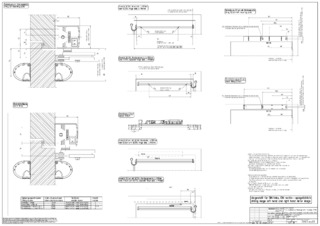

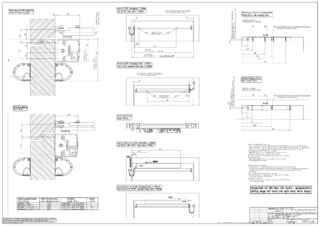

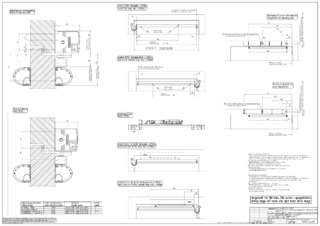

Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail Yes
Door leaf installation hinge side with roller guide rail Yes
Door leaf installation hinge side with link arm Yes
Mechanical latching action No
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Power rating 75 W
Power supply for external consumers (24 V DC) 600 mA
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Mode of operation Automatic, Permanently open, Night, Off
Automatic function Yes
Low-energy function Yes
Servo function No
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch integrated in the drive, Programme switch TPS
Parameter setting Control unit, Programme switch DPS

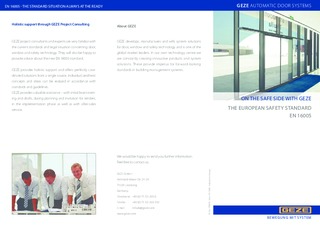

Standard conformity EN 16005
