MSW Comfort * Movable all-glass partition wall system for shop partitions and flexible room design
- Design lines: Classicline, Pureline and Protectline
- Upper and lower continuous horizontal profile offers maximum transparency
- Consisting of swing doors and sliding panels
- Optional with sliding swing door
- Comfort locking mechanism integrated as standard
- SmartGuide technology integrated depending on selected stacking area
- Panel weight up to 150 kg
- ESG and LSG can be used
- Glass thickness up to 12.76 mm
- Track system with curve technology for easier movement of the elements
Application Areas
- Movable glass partitioning walls
- Internal and protected external area
- Can be used up to 4000 mm clear height
- Can be used up to 1500 mm element width
- Can be used for linear and segmented axis profiles
Installation situations in reference objects and videos
MSW Comfort with vertical locking unit
The vertical locking increases the convenience of operating the last element in MSW systems in which all elements are to be parked outside the system front. The element and the entire MSW system are closed by a simple and uncomplicated rotation of the control unit - simply, quickly and safely. © GEZE GmbH
MSW Comfort with vertical locking unit
The vertical locking increases the convenience of operating the last element in MSW systems in which all elements are to be parked outside the system front. The element and the entire MSW system are closed by a simple and uncomplicated rotation of the control unit - simply, quickly and safely. © GEZE GmbH

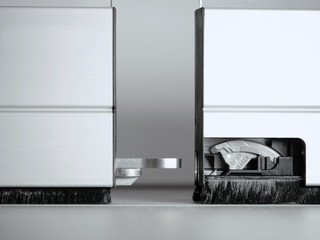

MSW system complex with comfort locking mechanism: unlock
The mechanical automatic MSW Comfort panel locking mechanism simplifies the construction and demolition of shop and system fronts. © Jürgen Biniasch / GEZE GmbH
MSW system complex with comfort locking mechanism: closed
The units, which are integrated into the lower panel profile, lock automatically to the floor and to each other by sliding the panels. This means manual activation is no longer required. © Jürgen Biniasch / GEZE GmbH
MSW system in the Palacio de Congresos de Oviedo, Spain
Transparent, movable separation in the foyer with GEZE manual sliding wall systems (MSW). © Pau Esculies / GEZE GmbH
MSW system in the Palacio de Congresos de Oviedo
GEZE MSW systems provide maximum transparency and unhindered visibility, while at the same time organizing the space within rooms. © Pau Esculies / GEZE GmbH
Novotel London Heathrow
Sliding doors, door closers or glass partition wall systems – GEZE is turning the Novotel at Heathrow Airport into the new design flagship of the Nine Group. © GEZE GmbH
MSW System at the McLaren Showroom Frankfurt
Various applications of the GEZE MSW and maximum transparency set the proper stage. © GEZE GmbH
MSW System at the McLaren Showroom Frankfurt
Room design and a high-quality product presentation are individually possible with GEZE manual sliding wall systems (MSW). © GEZE GmbH
Installation video | MSW Comfort
In the following video, we show you the construction of a GEZE MSW system with the MSW Comfort mechanical-automatic sliding panel locking mechanism.
Manual sliding wall systems (MSW) by GEZE in the shopping mall at the BahnhofCity Vienna West.
MSW are key in creating an inviting and open atmosphere in shopping malls. Shops and outdoor spaces merge to allow barrier-free access. © Sigrid Rauchdobler / GEZE GmbH
MSW door systems by GEZE in the shopping mall at the BahnhofCity Vienna West
In Vienna's Westbahnhof, the design with a right and left stacking area allows a partial opening of the shop front. This means people can leave a shop when the MSW is closed, thanks to a double-action door with a floor spring which is positioned in the stacking area, and forms a secure lock for the moveable glass partition wall. © Sigrid Rauchdobler / GEZE GmbH
Technical data
| MSW Comfort | |
| Frameless | Yes |
| Indoor use | Yes |
| Outdoor use | Yes |
| Leaf height (max.) | 4000 mm |
| Leaf width (min.) | 700 mm |
| Leaf width (max.) | 1500 mm |
| Leaf weight with single carriage (max.) | 100 kg |
| Leaf weight with double carriage (max.) | 150 kg |
| Stacking area layout | Parallel, 90°, Special stacking area |
| Stacking area distribution | one-sided, double-sided |
| Track geometry | straight, polygonal, bent continuously |
| Optional floor guide | Yes |
| Top and bottom sealing brushes | Yes |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Jürgen Biniasch / GEZE GmbH
LABELLING OBLIGATION: © Pau Esculies / GEZE GmbH
LABELLING OBLIGATION: © Pau Esculies / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
