TS 5000 L-R-ISM

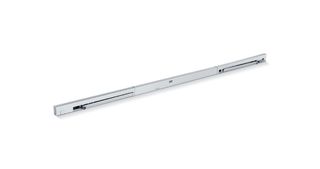

R-ISM guide rail OPP.HI.SIDE TS 5000 * With closing sequence control, electrical hold-open device on both leaves, smoke switch control unit and levers

R-ISM guide rail BG TS 5000
  • Integrated electric hold-open device
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Integrated smoke switch control unit
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Operating voltage 230 V AC
Show more
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • With screwed slide block
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
Contact us

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device and smoke switch
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Up to 2800 mm hinge clearance
  • Minimum hinge clearance 1560 mm, minimum width of the active leaf 905 mm and of the passive leaf 380 mm

Technical data

R-ISM guide rail OPP.HI.SIDE TS 5000
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/60 Hz
Duty rating 100 %
IP rating IP20
Minimum hinge clearance 1560 mm
Minimum passive leaf width 380 mm
Standard conformity EN 1155, EN 1158
Approvals General building approval from DIBt as a hold-open system
Length 2730 mm
Width 55 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 °
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Closing sequence control integrated Yes
Height correction possible Yes
Flexible opening restrictor Yes
