GCER 300

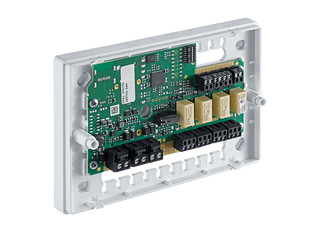

GCER 300 I/O Box GCER 300 2-door access control
- Access authorisation through ID card or 4-6 digit PIN code
- The system supports RFID identification media in the 13.56 MHz range (ISO14443A)
- Access authorisations can be created quickly and easily, and be deleted as well
- Creation and management of up to 200 persons
GCER 300 2-door access control
Application Areas
- Access control solution for one or two doors
Installation situations in reference objects and videos

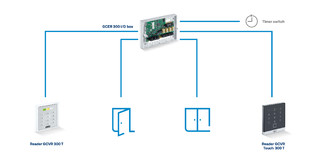

Diagram of the GCER 300 access control
The GCER 300 access control system as an exemplary structure. The GCER 300 2-door access control system consists of the GCER 300 I/O Box and a GCER 300 RFID reader, which can optionally be supplemented with another reader.
Technical data
| GCER 300 I/O Box | |
| Dimensions | 150 x 100 x 36 mm |
| Service temperature | -20 - 60 °C |
| Type of installation | Surface-mounted installation |
| IP rating | IP30 |
| Operating voltage | 8 - 30 V DC |
| Number of persons (recommended) | 200 |
| Number of relays | 4 Stk. |
| Number of inputs | 4 Stk. |
| Number of outputs | 4 Stk. |
| Number of readers | 2 Stk. |
| Master card system for programming the authorisations | Yes |
| Office mode | Yes |
