GCER 300

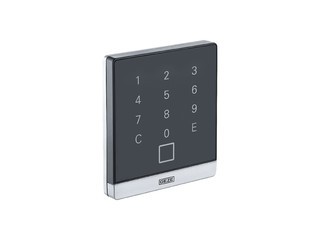

GCVR 300 Touch T flush-mounted RFID reader for GCER 300 access control
- High-quality glass look
- Read-out of access authorisations
- Encrypted data communication with the door control unit
- Optical and acoustic signalling
- PIN keypad for assigning authorizations using a mastercard
RFID reader for GCER 300 access control
Application Areas
- Inner and outer area (IP54)
- Non-secured outer area
- Secured inner area
Installation situations in reference objects and videos

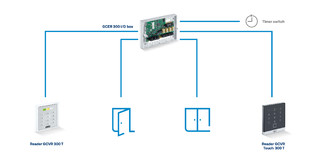

Diagram of the GCER 300 access control
The GCER 300 access control system as an exemplary structure. The GCER 300 2-door access control system consists of the GCER 300 I/O Box and a GCER 300 RFID reader, which can optionally be supplemented with another reader.
Technical data
| GCVR 300 Touch T flush-mounted | |
| Dimensions | 88 x 101 x 35 mm |
| Service temperature | -25 - 60 °C |
| Type of installation | Flush-mounted installation |
| IP rating | IP54 |
| Keypad | Yes |
| operating voltage | 8 - 30 V DC |
| Frequency | 13.56 Mhz |
| Master card system for programming the authorisations | Yes |
| Office mode | Yes |
