GCER 300

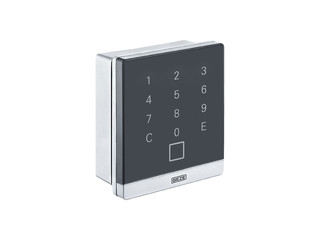

GCVR 300 Touch T Surface-mounted * RFID reader for GCER 300 access control

GCVR 800 Touch T AP / GCVR 300 Touch T AP
  • High-quality glass look
  • Read-out of access authorisations
  • Encrypted data communication with the door control unit
  • Optical and acoustic signalling
  • PIN keypad for assigning authorisations using a mastercard
Contact us

Application Areas

  • Inner and outer area (IP54)
  • Non-secured outer area
  • Secured inner area

Technical data

GCVR 300 Touch T Surface-mounted
Dimensions 88 x 101 x 41 mm
Service temperature -25 - 60 °C
Type of installation Surface-mounted
IP rating IP54
Keypad Yes
Operating voltage 8 - 30 V DC
Frequency 13.56 Mhz
Master card system for programming the authorisations Yes
Office mode Yes
