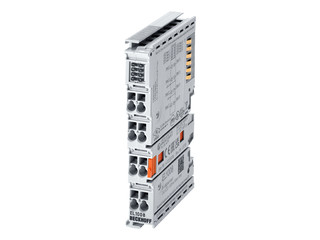

myGEZE Control 8-channel digital input terminal Digital input terminal with eight inputs to detect binary control signals from the process level
- Eight channels that indicate their signal state through light emitting diodes
- Control signals are transported to the basic controller in a galvanically isolated manner
- No bouncing due to the mechanical switch thanks to 3 ms input filter
- Status LEDs indicate the input status directly
Digital input terminal with eight inputs to detect binary control signals from the process level
Application Areas
- Connection of non-bus-capable components to the GEZE building system
- Suitable for signals with a rated voltage of 24 V DC
Installation situations in reference objects and videos
myGEZE Control
myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.
Technical data
| myGEZE Control 8-channel digital input terminal | |
| Dimensions | 12 x 100 x 68 mm |
| Service temperature | -10 - 40 °C |
| Type of installation | Top hat rail mounting |
