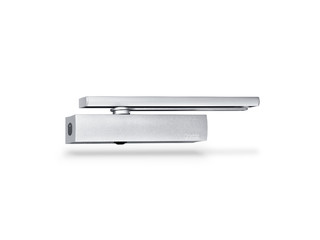

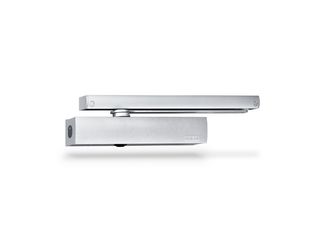

TS 5000 EFS 3-6 with guide rail TS 5000 / 3000 * Overhead door closer with guide rail for single leaf doors up to 1400 mm leaf width with electric free swing function and guide rail for areas with small installation height (narrow frames)
- Closing force with variable adjustment EN3-6
- Operating voltage 24 V DC
- Can be used for right and left hand doors without conversion
- Free swing function makes it possible to pass through the door with little physical force required
- Comfort hold-open function locks the door at the end of the free swing area
- External smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Suitable for fastening to narrow frames
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side and transom installation hinge side (different variants)
- Hold-open systems with integrated hold-open function with free swing
- Barrier-free access in accordance with DIN 18040
Installation situations in reference objects and videos
Technical data
TS 5000 EFS 3-6 with guide rail TS 5000 / 3000 | |
Closing force in accordance with EN 1154 | EN 3 - 6 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
Leaf width (max.) | 1400 mm |
Type of installation | Door leaf installation hinge side |
Opening angle (max.) | 180 ° |
Input voltage | 24 V DC |
Suitability for fire protection doors | Yes |
Free swing area | 85 ° - 160 ° |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Electrically, for free swing function |

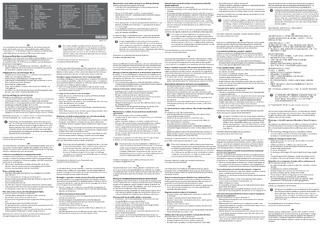

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
