Slimdrive SCR * Automatic curved sliding door system for the realisation of 360° solutions
- Very quiet running, low-wear direct current drive solution with a height of only 7 cm
- The system consists of two drives that are controlled separately from one another.
- 40 % more opening width than with linear sliding door drives
- Wide range of drive variants and equipment options possible
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- 2- and 4-leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths from 800 to 2500 mm possible
- Door leaf weights up to maximally 120 kg
- Suitable profile systems are fine-framed profile systems with ISO and mono glass and all-glass systems (GGS)
Installation situations in reference objects and videos
Technical data
Slimdrive SCR | |
For escape and rescue routes | Yes |
Barrier-free | Yes |
Adjustable opening speed (ventilation) | Yes |
Adjustable closing speed | Yes |
Opening width 2-leaf | 800 mm - 2500 mm |
Clear passage height | 3000 mm |
Canopy height (min.) | 75 mm |
Leaf weight (max.) 1-leaf | 120 kg |
Leaf weight (max.) 2-leaf | 120 kg |
Radius (min.) | 1000 mm |
Radius (max.) | 2000 mm |
Moving leaf version | 10 mm LSG, Special glass on request |
Side elements version | 10 mm LSG, 22 mm panel lining, Special glass on request |
Surface | Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, Coated with polished stainless steel, coated with grit 240 stainless steel, special coating on request |
Version of roof structure | optical sheet metal covering, waterproof roof with waterspout, Glass roof |
Illumination | with roof variant, not possible with glass roof |
Floor covering | Entrance mat, Entrance mat according to customer wishes |
Hot-air curtain system | possible, depends on the ceiling construction |
Off-centre façade connection | Yes |
Special functions on request | Yes |
Operation | Programme switch DPS, Programme switch TPS, Control via building management system |
Standard conformity | DIN 18650, EN 16005 |

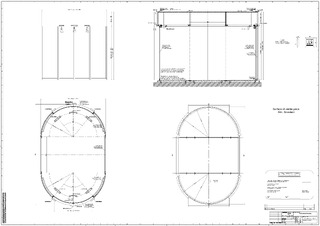

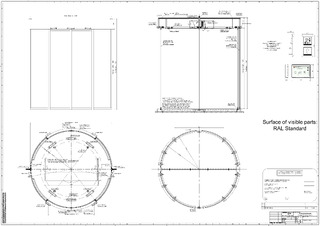

Downloads
LABELLING OBLIGATION: © Michael Molloy / GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Robert Sprang / GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Andrea Tosca / GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
