Slimdrive SCR FR RC2 * The perfect combination of design and certified safety
- Certified burglar resistance according to resistance class RC2
- Escape route function with redundant drive design
- Equipped with a rod locking and reinforced profile components
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- The system consists of two drives that are controlled separately from one another.
- 40 % more opening width than with linear sliding door drives
- Wide range of drive variants and equipment options possible
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
Application Areas
- Double-leaf door systems in escape and rescue routes
- Interior and exterior doors with maximum safety requirements
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Opening widths from 800 to 2500 mm possible
- Door leaf weights up to maximally 120 kg
Technical data
Slimdrive SCR FR RC2 | |
For escape and rescue routes | Yes |
Barrier-free | Yes |
Adjustable opening speed (ventilation) | Yes |
Adjustable closing speed | Yes |
Opening width 2-leaf | 800 mm - 2500 mm |
Clear passage height | 3000 mm |
Canopy height (min.) | 75 mm |
Leaf weight (max.) 1-leaf | 120 kg |
Leaf weight (max.) 2-leaf | 120 kg |
Radius (min.) | 1350 mm |
Moving leaf version | 10 mm LSG, Special glass on request |
Side elements version | 10 mm LSG, Special glass on request |
Surface | Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, special coating on request |
Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
Illumination | with roof variant |
Floor covering | Entrance mat, Entrance mat according to customer wishes |
Hot-air curtain system | possible, depends on the ceiling construction |
Special functions on request | Yes |
Operation | Programme switch DPS, Programme switch TPS, Control via building management system |
Standard conformity | DIN 18650, EN 16005 |
Downloads

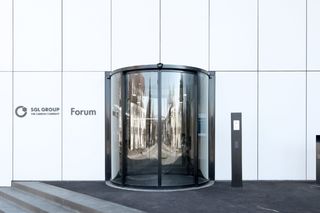

LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
