Push button

EFT elbow switch * Stainless steel elbow switch with IP65 IP rating for activating automatic doors

Elbow switch Stainless steel Elbow switch Stainless steel
  • IP rating IP65
  • Stainless steel - V2A
  • Flat design with a height of 250 mm
  • Large push switch for activation even with elbows
Contact us

Application Areas

  • Activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Interior and exterior applications
  • Surface-mounted installation

Technical data

EFT elbow switch

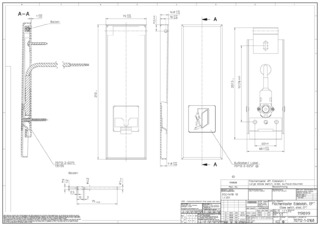

Dimensions 75 x 250 x 17 mm
Switching voltage 230 V
Switching current 1 A
IP rating IP65
Type of installation Surface-mounted
Material Stainless steel
