LS 990 elbow switch * Elbow switch for activating automatic doors
- Flat design with a height of 223 mm
- Large push switch for activation even with elbows
- Optional expansion with transmitting module
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Inside
Installation situations in reference objects and videos

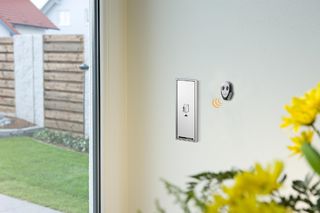

Activation remote control
Remote control for activation GEZE automatic doors and window drives over the GEZE wireless programme. © Studio BE / GEZE GmbH

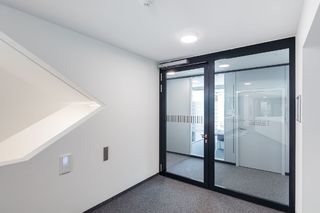

Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit
The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH
ECdrive H, LS 990, Hospital Door
© Łukasz Janicki / GEZE GmbH
Elbow switch LS990
Activation device for autom. swing, sliding, folding and curved sliding door © GEZE GmbH
Powerturn F/R with LS 990
Powerturn F/ R: Electromechanical swing door drive with integrated smoke switch with elbow switch LS 990 to activate automatic doors. © Jürgen Pollak / GEZE GmbH

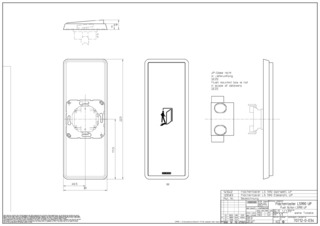

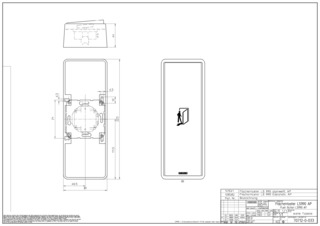

Technical data
| LS 990 elbow switch | |
| Dimensions | 81 x 223 mm |
| Switching voltage | 230 V |
| Switching current | 10 A |
| IP rating | IP30 |
| Type of installation | Surface-mounted, Flush-mounted installation |
Downloads
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
