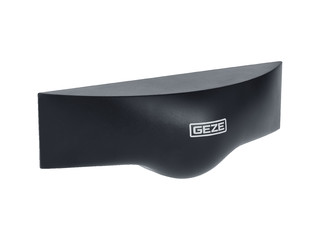

GC 302 * Radar movement detector for the activation of automatic doors
- Convenient commissioning with pre-programmed settings
- Configuration possible via push buttons or remote control
- Clearly defined radar field (narrow or wide field) with reliable detection
- Integrated motion tracking also records slow movements
- Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
- Door opening impulse only triggered if needed
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Interior and exterior doors
Technical data
GC 302 | |

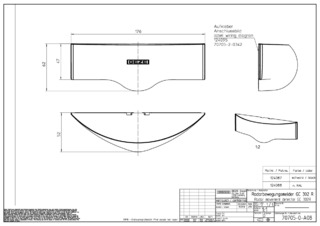

Dimensions | 176 x 62 x 52 mm |
Technology | Electromagnetic radar waves |
Operating voltage | 12-36 V DC / 12-28 V AC |
Switching voltage | 48 V |
Switching current | 1 A |
Operating current | 50 mA |
IP rating | IP54 |
Connection type | Plug-in screw terminal |
Connector cable length | 5000 mm |
Installation height (max.) | 4000 mm |
Transmission frequency | 24.125 GHz |
Weight | 150 g |
Service temperature | -20 - 60 °C |
Humidity | 0-90 % relative, non-condensing |
Downloads
LABELLING OBLIGATION: © Nico Walke / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
