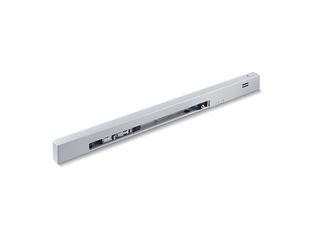

TS 5000 R
R guide rail TS 5000 * With electrical hold-open device, smoke switch control unit and lever
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Retention force of the electromechanical hold-open device can be variably adjusted
- Integrated smoke switch control unit
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Operating voltage 230 V AC
- Horizontally adjustable in the installation position by 4 mm through elongated holes
- With screwed slide block
Application Areas
- Single leaf doors
- Hold-open systems with integrated hold-open device and smoke switch
- Installation on hinge side
- Right and left single-action doors
Technical data
| R guide rail TS 5000 | |
| Supply voltage | 230 V AC |
| Input voltage | 230 V AC |
| Frequency of supply voltage | 50/60 Hz |
| Duty rating | 100 % |
| IP rating | IP20 |
| Standard conformity | EN 1155 |
| Approvals | General building approval from DIBt as a hold-open system |
| Length | 745 mm |
| Width | 55 mm |
| Height | 30 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Electrical |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° - 130 ° |
| Smoke switch integrated | Yes |
| Contamination indicator | Yes |
| Adaption of the alarm threshold | Yes |
| Integrated power supply | Yes |
| Height correction possible | Yes |
| Flexible opening restrictor | Yes |
Downloads

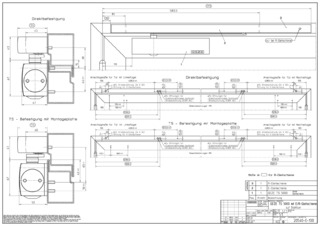

TS 5000 R guide rail, R guide rail TS 5000 opposite hinge side, TS 5000 R guide rail without electric hold-open device
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
