TS 5000 E-ISM

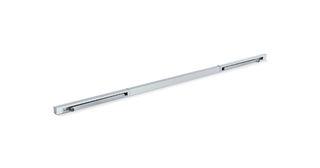

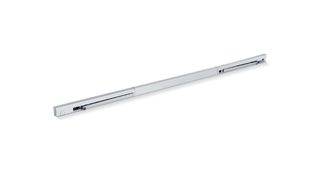

E-ISM guide rail TS 5000 * With closing sequence control, electrical hold-open device on both leaves and levers

E-ISM guide rail BG TS 5000
  • Electric hold-open device in the guide rail with hold-open area of 80°-130°
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Operating voltage 24 V DC
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
Show more
  • With screwed sliding block
Contact us

With closing sequence control, electrical hold-open device on both leaves and levers

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device
  • Installation on hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Up to 2800 mm hinge clearance
  • Minimum hinge clearance 1300 mm, minimum width of passive leaf 400 mm

Technical data

E-ISM guide rail TS 5000
Input voltage 24 V DC
Electrical power consumption 4.8 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Minimum hinge clearance 1300 mm
Minimum passive leaf width 400 mm
Standard conformity EN 1155, EN 1158
Length 2630 mm
Width 40 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open device Electrical
Hold-open device on the active leaf / passive leaf Yes / Yes
Hold-open device can be overridden Yes
Hold-open range 80 ° - 130 °
Integrated closing sequence control Yes
Height correction possible Yes
Flexible opening restrictor Yes
