TS 4000 R-IS
Closer body TS 4000 R-IS KM BG second unit * Main body for overhead door closer with link arm EN 1-6 without smoke control unit with closing sequence control and electric hold-open device
- Closing force can be variably adjusted from the front
- Visual closing force display ensures correct setting
- Closing seed can be adjusted from the front via valve
- Latching action can be adjusted via link arm
- Electric hold-open device
- Door closer, can be used for right and left hand doors
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Transom installation opposite hinge side
- Hold-open systems with integrated hold-open device
Technical data
| Closer body TS 4000 R-IS KM BG second unit | |
| Closing force in accordance with EN 1154 | EN 1 - 6 |
| Leaf width (max.) | 1400 mm |
| Type of installation | Transom installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Identical design for DIN left and DIN right | Yes |
| Supply voltage | 24 V |
| Input voltage | 24 V DC |
| Duty rating | 100 % |
| Residual ripple | 20 % |
| IP rating | IP20 |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006, EN 1155 |
| Length | 547 mm |
| Width | 65 mm |
| Height | 65 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via link arm |
| Back check integrated | No |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
| Hold-open function | Electrical |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° - 175 ° |
Downloads

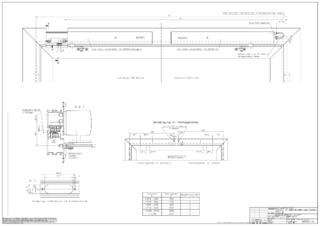

GEZE TS 4000 R-IS KM BG Second unit
