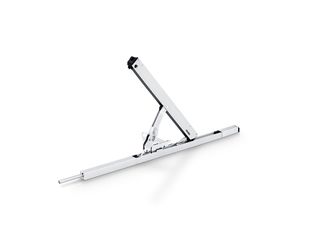

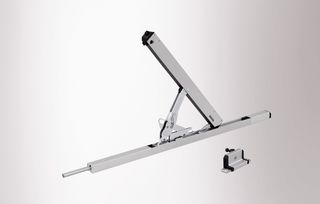

Scissors OL 320 * Scissors OL 320 with sliding leaf bracket and unhinging inhibitor
- Achieves an opening width of 320 mm
- The opening width can be adjusted
- Leaf bracket suitable for overlap heights of 0-25 mm
- Integrated leaf locking mechanism in the scissors
- Release button blocked by unhinging inhibitor
- Connection from the scissor to the leaf bracket cannot be triggered via the release button
- Convenient hanging of the leaf via ball head coupling connection between the scissor and the leaf bracket
- Scissors can be installed from the front
Application Areas
- For windows with high leaf weights up to max. 250 kg
- Can be used on the left and right
- Inward-opening rectangular windows with bottom-hung, top-hung, side-hung and centre pivoted leaves
- Installation on wooden, PVC or metal windows
- Frame installation
Installation situations in reference objects and videos

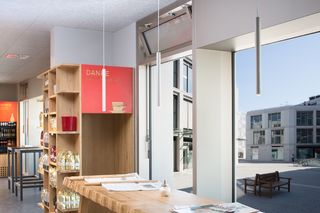

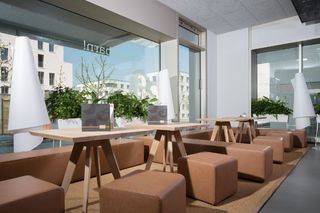

OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH

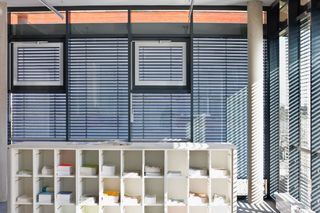

OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH

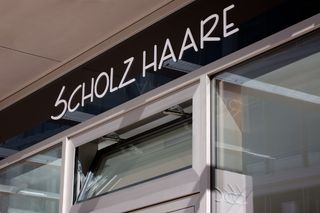

OL 90 N, Hotel Amano
Surface mounted Slimline skylight opener with an opening width of 170 mm © Stefan Dauth / GEZE GmbH
TS 5000 + OL 90 N post-frame transmission, Augustinum
TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission © Dirk Wilhelmy / GEZE GmbH
Technical data
| Scissors OL 320 | |
| Leaf width (min.) | 680 mm |
| Leaf height (min.) | 400 mm |
| Leaf weight (max.) | 250 kg |
| Adjustable opening width (stroke reduction) | Yes |
Downloads
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Stefan Dauth / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
