E 1500 N * Spindle drive with slim dimensions for heavy leaves in the façade and roof area

E 1500 N
  • Slim dimensions and an aluminium housing for highest design demands
  • Robust and corrosion-resistant design with built-in end position damping
  • Syncro drive sets are available for leaf widths over 1200 mm
  • Extensive brackets allow versatile installation on main or secondary closing edges
  • Syncro set without external control unit
Contact us

E 1500 N

Application Areas

  • Heavy window elements in the façade and roof area
  • Natural ventilation, smoke and heat extraction systems
  • Inward- and outward opening windows with bottom-hung, top-hung and side-hung leaves as well as roof windows
  • Can be used in the exhaust air and air inlet system
  • Installation on wooden, PVC or metal windows

Technical data

E 1500 N
Dimensions 36 x 36 mm
Opening speed RWA 4 mm/s
Opening speed ventilation 4 mm/s
Closing speed (max.) 4 mm/s
Locking force (max.) 5000 N
Compressive force 1600 N
Tensile force 1600 N
Voltage at operation 24 V (+25 % to -20 %)
Operating voltage 24 V DC
Current consumption 1.2 A
Power consumption 29 W
Residual ripple 20 %
Duty rating 30 %
Connector cable length 2.5 m
Special length of connector cable 5 m, 10 m
Min. core cross section 1 mm²
Number of cores 3 cores
Service temperature -5 - 75 °C
IP rating IP65
protection rating III
Syncro function Yes
Type of additional locking mechanism Locking drive
Type of stroke shortening Factory setting
End position cut-off extended electronic
End position cut-off retracted electronic
Overload cut-off Yes
Complete opening within 60 s yes, up to 300 mm stroke
Number synchronisation drive units 4
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window inward opening leaf installation Yes
Bottom-hung window OUTWARD-opening frame installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Side-hung window OUTWARD-opening frame installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
Top-hung window OUTWARD-opening frame installation Yes
OUTWARD-opening roof window Yes

Downloads

E 1500 spindle drive

LABELLING OBLIGATION:  © Nikolaus Grünwald / GEZE GmbH

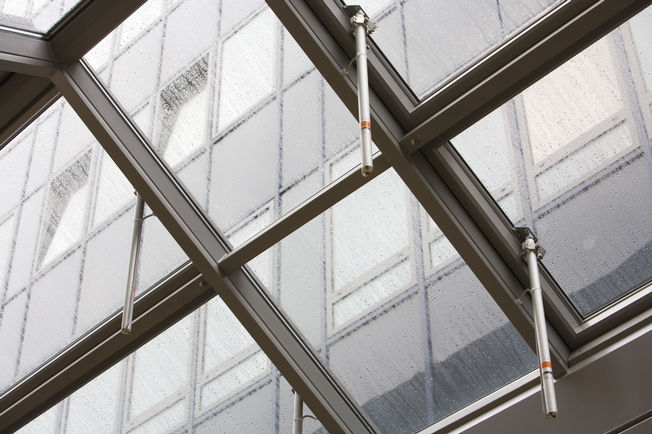

Installation situation (49755)
E 1500 N

LABELLING OBLIGATION:  © GEZE GmbH

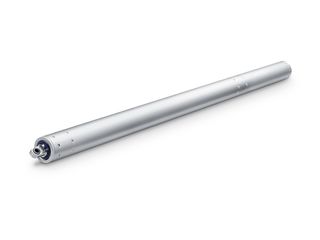

Product shot (937399)

Variants & Accessories

Roof window console E 1500 H40
Accessories

Roof window bracket H40 E 1500

For installation of the E 1500 N spindle drive

Product details
Roof window console E 1500 H86
Accessories

Roof window bracket H86 E 1500

For installation of the E 1500 N spindle drive

Product details
Leaf bracket E 1500
Accessories

Leaf bracket E 1500

For roof window installation of the E 1500 N spindle drive

Product details
