Slimdrive SL-BO * Automatic sliding door system for escape and rescue routes with break-out function
- BO function allows the leaves and side elements to swing open in the direction of escape
- Integrated electrical lockings for "night" mode of operation
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
- Various mechanical and electrical locks are optionally available
Application Areas
- Single and double leaf sliding door systems along escape and rescue routes
- Interior and exterior doors with maximum safety requirements
- Façades with slim mullion-transom constructions
- Opening widths of 900 to 2500 mm possible
- Door leaf weights of up to 100 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Installation situations in reference objects and videos

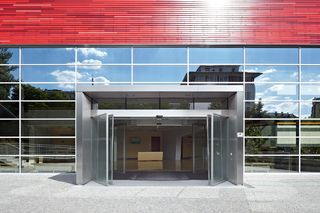

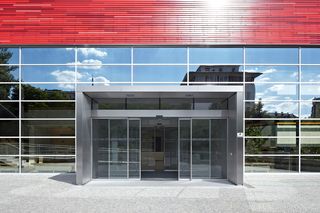

Slimdrive SL-BO, Auditorium centre Rechts der Isar Hospital, Munich
Automatic sliding door system for emergency exits with break-out function © Robert Sprang / GEZE GmbH

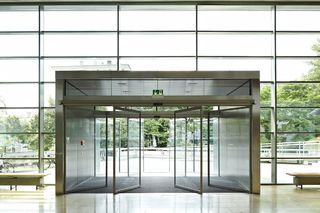

Automatic sliding door drive Slimdrive SL-BO in the auditorium centre of the clinic on the right of the Isar in Munich
Automatic sliding door system for emergency exits with break-out function © Robert Sprang / GEZE GmbH
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

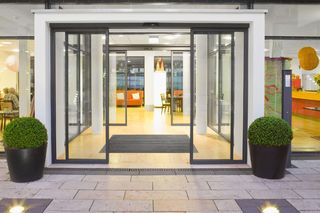

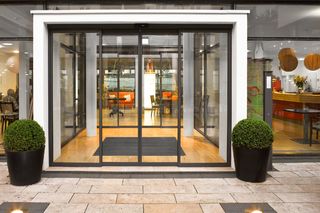

Automatic sliding door drive SL-BO, installed at AWO
Automatic sliding door system for emergency exits with break-out function © Lothar Wels / GEZE GmbH

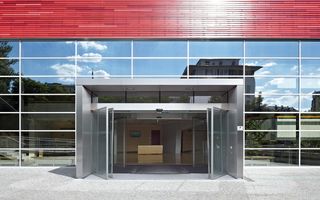

Automatic sliding door drive Slimdrive SL-BO in the auditorium centre of the clinic on the right of the Isar in Munich
Automatic sliding door system for emergency exits with break-out function © Robert Sprang / GEZE GmbH
Automatic sliding door drive SL-BO, installed at the AWO in Cologne
Automatic sliding door system for emergency exits with break-out function © Lothar Wels / GEZE GmbH

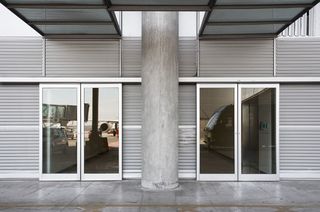

Automatic sliding door drive Slimdrive SL-BO, installed at Madrid-Barajas airport
Automatic sliding door system for emergency exits with break-out function © Rafael Vargas / GEZE GmbH
Technical data
| Slimdrive SL-BO | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| Height | 70 mm |
| Depth | 189 mm |
| Leaf weight (max.) 1-leaf | 100 kg |
| Leaf weight (max.) 2-leaf | 100 kg |
| Opening width 1-leaf | 900 mm - 1400 mm |
| Opening width 2-leaf | 1000 mm - 2500 mm |
| Service temperature | 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |
Downloads
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
